5PCS M22 Waterproof Ethernet Cat6 RJ45 Connector IP67 Outdoor LAN Coupler Adapter Male to Female with 25mm Cable
Product details
| Management number | 225327746 | Release Date | 2026/05/09 | List Price | US$9.20 | Model Number | 225327746 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

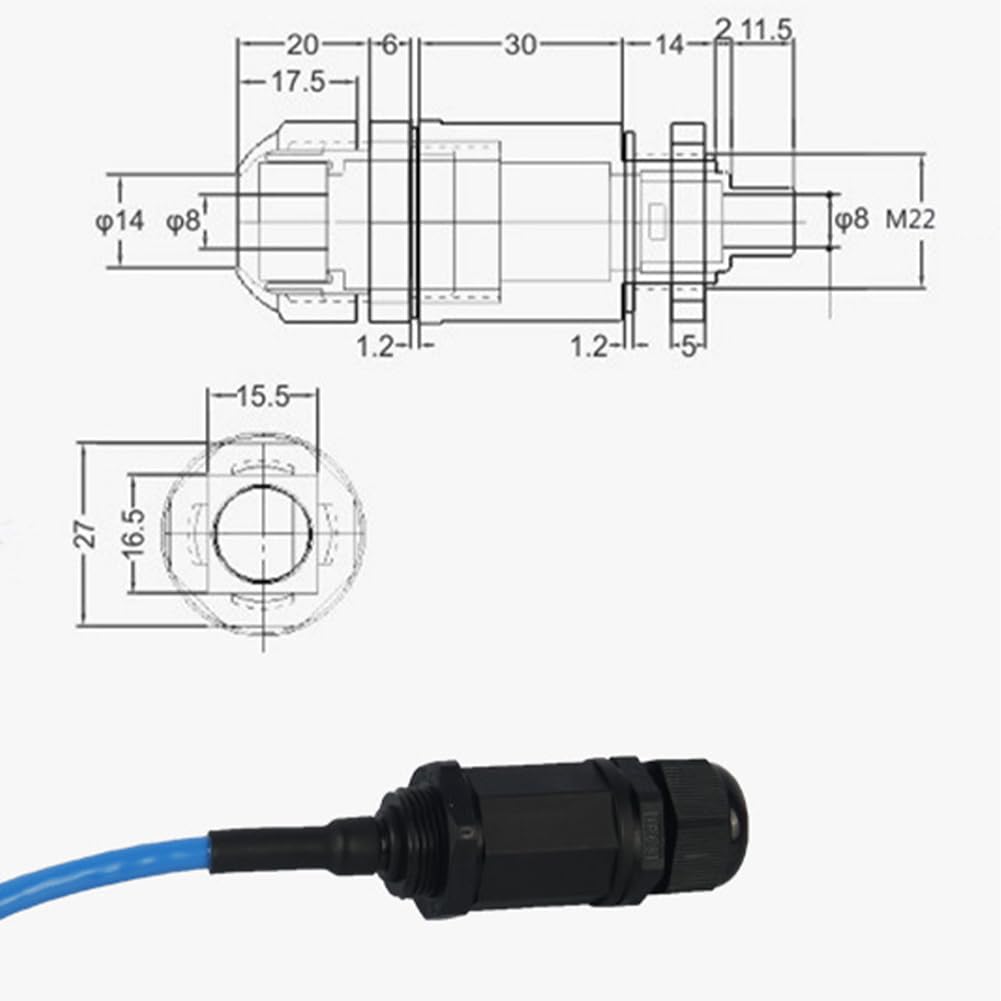

The RJ45 Waterproof Panel Mounting Connector with cable is an excellent solution for outdoor networking, industrial automation, marine applications, or any environment where protection against water and harsh conditions is essential. It ensures a reliable and durable Ethernet connection in challenging situations, contributing to the overall performance and longevity of the network infrastructure. Specifications: Number of cores: 8 PIN Waterproof rating: IP67 Connection type: RJ45 Flame retardant rating: UL94V-0 Connection method: plug type + thread pressure lock Connector wire-in range: OD (3ï½ 8) mm Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~7.5mm Installation size: M22X1.5 Network cable length: 250mm Connector transmission classification: CAT6 Transmission speed range: 10BASE-T. 100 BASE-T.1000 BASE-T and 10000 BASE-T network Electrical parameters: Rated current: 1.5A Rated voltage: 125VAC, 75VDC Insulation resistance: ï¼ 500MÎ Compressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance: ï¼ 10mÎ Material: Shell: Nylon fiber Socket contact pin: 0.5mm diameter phosphor copper wire Contact pin gold plating thickness: 6u inch Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40ï½ 120Celsius Storage temperature: -25ï½ 85Celsius Atmospheric pressure: 86ï½ 106kPa Relative humidity: â ¤90% RH Package Included: 5x Waterproof M22 Cat6 RJ45 Connector
| ASIN | B0C4PH12MQ |
|---|---|
| Color | Black |
| Model | ANMBEST_MD512 |
| Brand Name | ANMBEST |
| Cable Type | Ethernet |
| Item Shape | Round |
| Unit Count | 1.0 Count |
| Item Weight | 0.26 Kilograms |
| Part Number | ANMBEST_MD512 |
| Manufacturer | ANMBEST |
| Connector Type | RJ45 |
| Number of Pins | 8 |
| Outer Material | Nylon fiber |
| Maximum Current | 1.5 Amps |
| Maximum Voltage | 125 Volts (AC) |
| Connector Gender | Male-to-Female |
| Specification Met | Ip67 |
| Compatible Devices | Router |
| Data Transfer Rate | 10000 Megabits Per Second |
| Indoor Outdoor Usage | Outdoor |
| Customer Package Type | Flat Free Package (FFP) |
| Compatible Phone Models | No Compatible Phone Models |
| Ethernet Cable Category | Cat 6 |
| Recommended Uses For Product | outdoor networking, industrial automation, marine applications |
| Other Special Features of the Product | shock-resistant |
