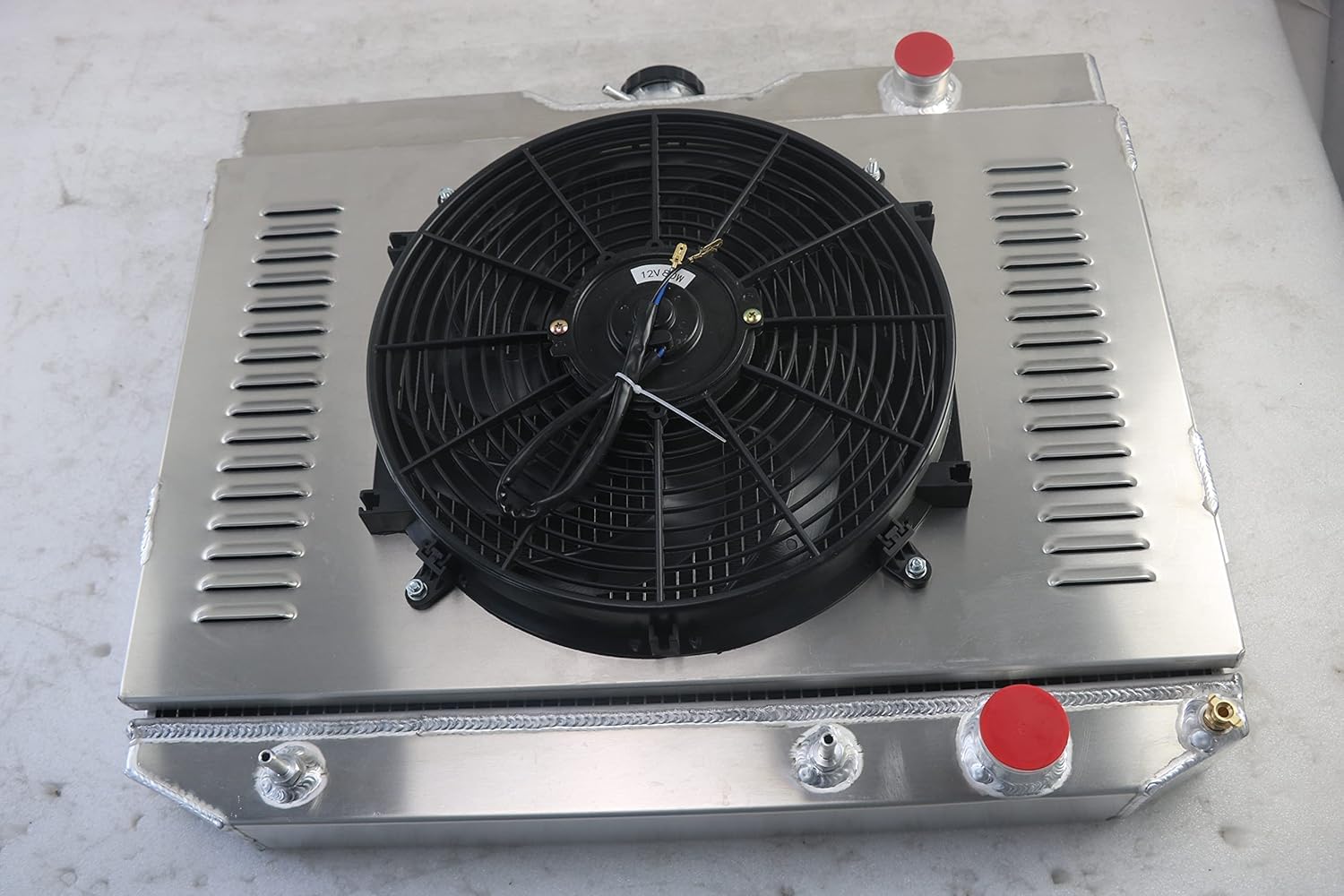

CU281 3 Row Aluminum Radiator for 1959-1965 Chevy Impala/El Camino/Bel Air/Biscayne V8 Radiador Radiators Shroud Fan Relay Kit 1960 1961 1962 1963 1964 59 60 61 62 63 64 65

FitmentChevy Impala 1959-1963 Only with Both Hoses on Pass SideChevy Chevelle 1964-1965 Only with Both Hoses on Pass SideChevy Bel-Air 1963-1965 Only with Both Hoses on Pass SideChevy Kingswood 1959-1962 Only with Both Hoses on Pass SideChevy Biscayne 1960-1965 Only with Both Hoses on Pass SideChevy Caprice 1959-1962 Only with Both Hoses on Pass SideChevy El Camino 1959-60/1964-65 Only with Both Hoses on Pass SideGMC Cabellero 1959-60/1964-65 Only with Both Hoses on Pass SideRadiator DetailsRow Count: 3 RowCore Size: 1.73" T x 16.2" H x 24.7" W Overall Size: 21.5" H x 27.9" WUpper Inlet: 1.57" located on driver sideLower Outlet: 1.77" located on passenger sideSurface Finish: Aircraft Grade Raw AluminumOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2200±200FAN DIAMETER X HEIGHT X THICKNESS: 14.05" X 14.05" X 2.5"Number of Blades: 8 blades (Plastic)Maximum Fan RPM/ Amp Draw: 2,250 rpm/12.70 ampsThermostat KitRED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Part NumberManufacturer Part Number: DPI281, SBR281, CC281, CU281, RAD281

• For Chevy Impala 1959-1963; For Chevy Chevelle 1964-1965; For Chevy Bel-Air 1963-1965; For Chevy Kingswood 1959-1962; For Chevy Biscayne 1960-1965; For Chevy Caprice 1959-1962; For Chevy El Camino 1959-60/1964-65; For GMC Cabellero 1959-60/1964-65
• Core Size: 1.73" T x 16.2" H x 24.7" W; Overall Size: 21.5" H x 27.9" W; Inlet/Outlet Diameter: 1.57"/1.77"
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed Installation. Please contact us if you need additional installation instructions
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
