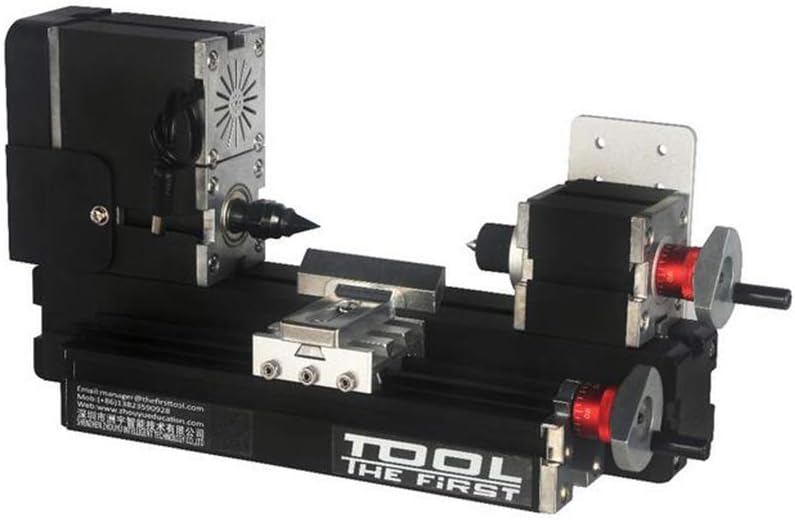

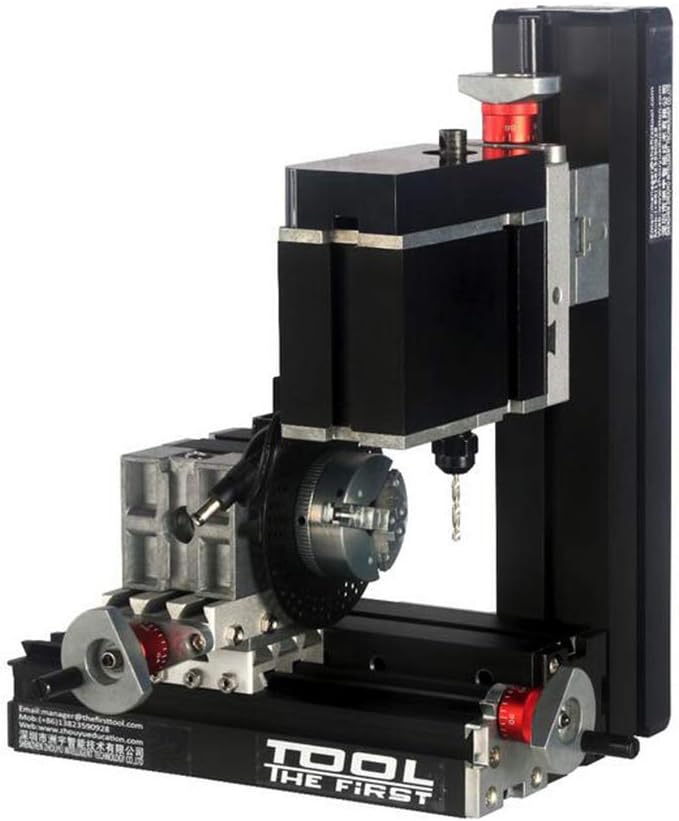

DIY All Metal 8 in 1 Mini Lathe with Wire Sawing Machine,Wood Lathe,Metal Lathe,Miller,Driler,Sander,Hand Held Machine Tool 60W

Parameter: Motor speed: 12,000rpm (optional choice 20,000rpm) Input voltage/current/power: 12VDC/5A/60W. Switching power input: 110V Jigsaw working table size: 90mm x 90mm Maximum working material diameter of metal lathe and woodturning lathe: 50mm Working material length of metal lathe and woodturning lathe: 135mm Center height of metal lathe: 75mm Slider travel: axis X 145, axis Y 32, axis Z 32. Collets:1-6mm Drilling working table size: 123 x 100mm Maximum workpiece size clamped by machine vice: 50mm Maximum workpiece diameter clamped by three-jaw chuck: 50mm There are three circles of holes on the dividing plate and each circle with the same ratio holes. The number of the holes on each circle is respectively 36,40,48. All of the machines are safe touch except milling machines. It requests to be used under parents or teachers instruction when the milling machine is being used by the kids. Working material thickness of jigsaw: hardwood 4mm, plywood 7mm, soft wood 18mm, aluminum 0.5mm, acrylic 2mm. It is a good tool for families and schools to do model airplane and other wood model crafts. The outer package, called as storage box, is made of plastic, not foam. Inside of the storage box, there are 3 transparent food-grade plastic box containing machine parts and other 2 transparent food-grade plastic box containing screws. With the good package, it is much easier for the students to store the machine parts and it also increases the machines service life. Remark: to put the certain parts in a certain place, we designed 6 locating slots in the storage box and each locating slots is completely covered Include :8 type DIY machine 1.Sawing machine2.Drilling machine3.Sanding machine 4.Milling Machine5.mini lathe6.Wood-turning Lathe 7.Indexing milling machine8.hand-held machine

• Suitable for DIY use, teaching use; not suitable for large-scale production and commercial use, mainly for model manufacturing
• Motor case and headstock are jointed.
• Maximum motor power is 144W by using more powerful motor. The parts in the kit can be assembled into 8 kinds of machines with different function- jigsaw,wood-turning machine, metal lathe, milling machine, drilling machine, sanding machine, hand-held machine, drilling machine with dividing plate,BUT only one kind of machine can be assembled each time.
• Main parts: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, big slider, drilling lev
