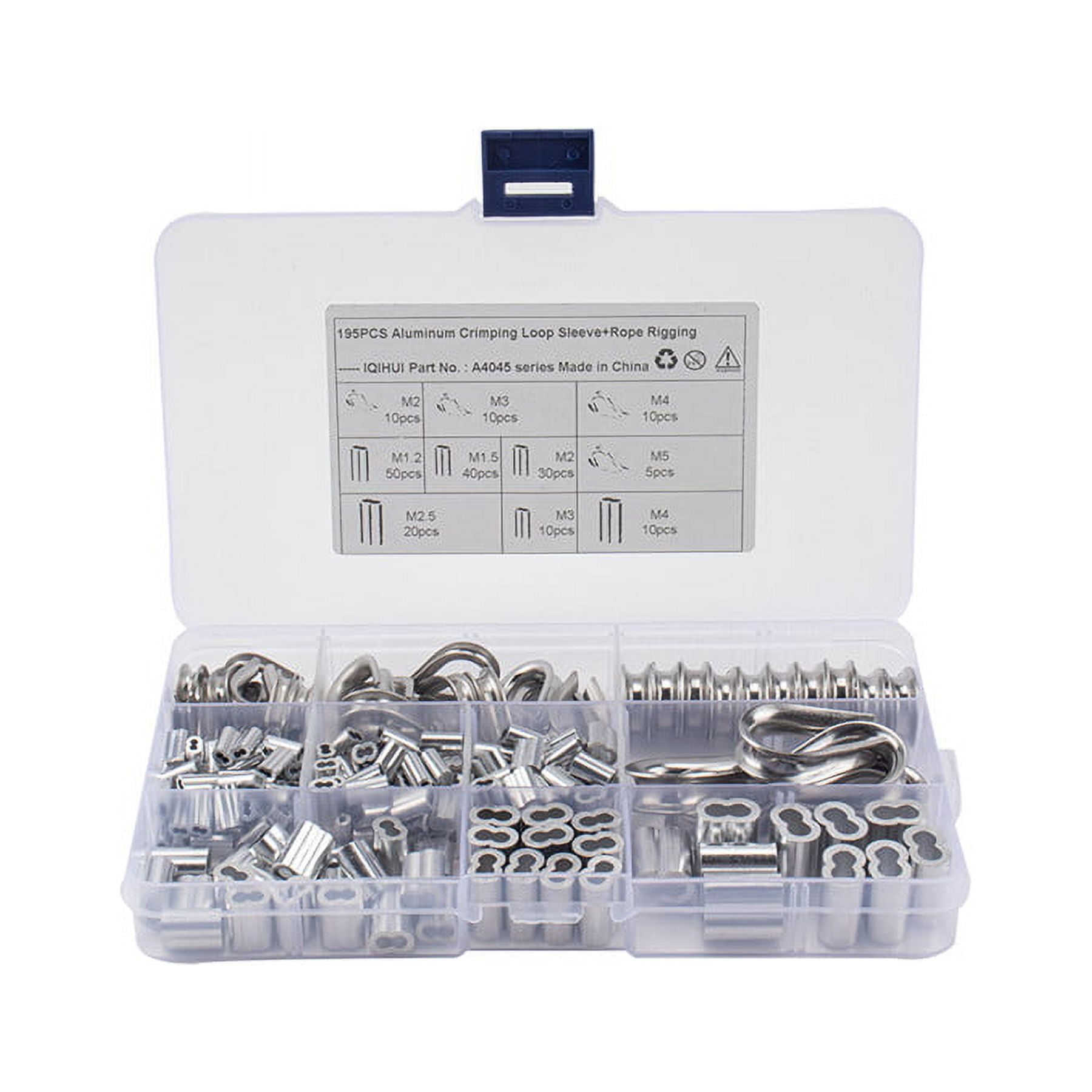

Phyun Stainless Steel Thimble 6-Size Aluminum Crimping Loop Sleeve Assortment Kit For Wire Rope Cable Thimbles Rigging

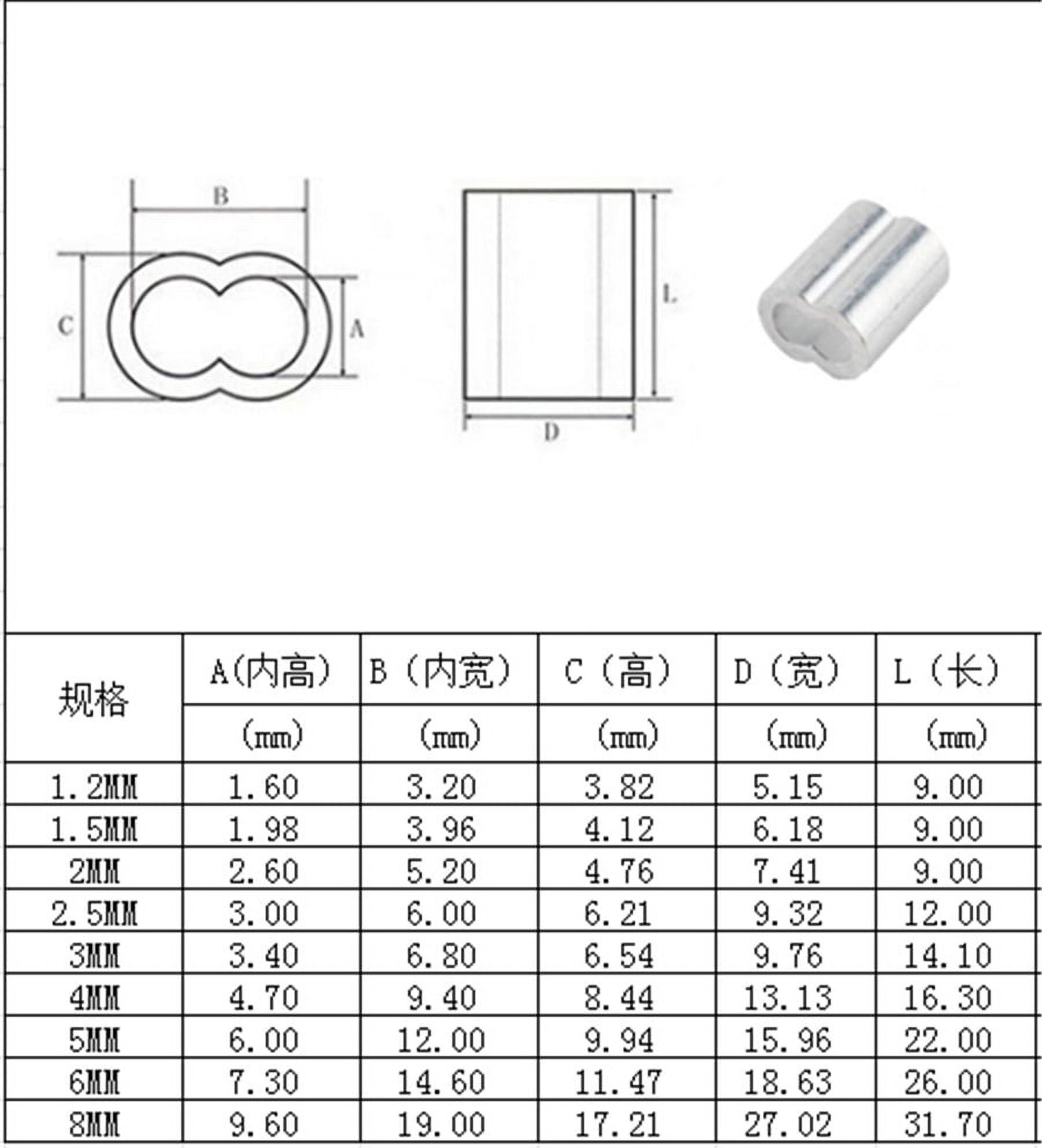

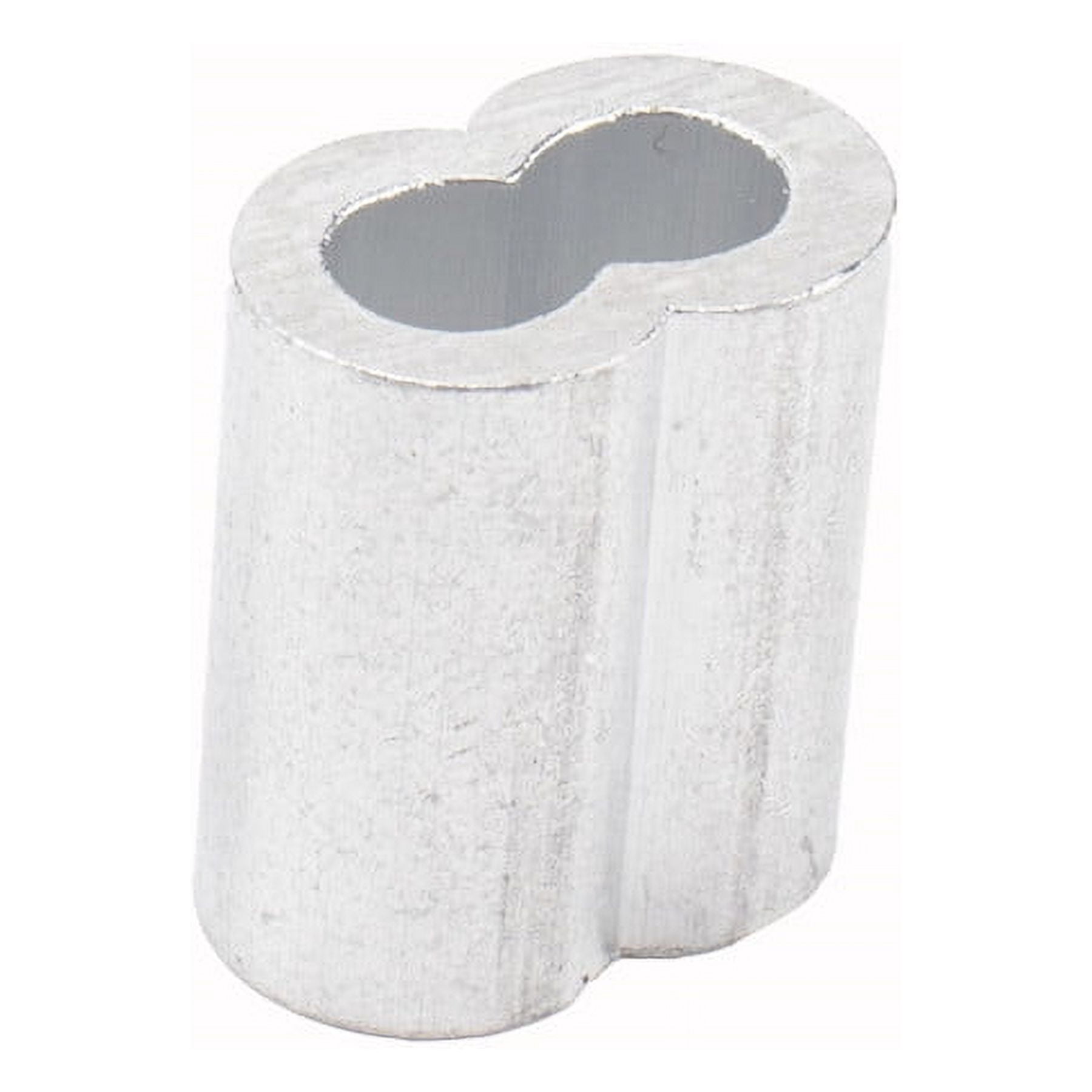

Description:<br>1. Product material: stainless steel 304, aluminum<br>2. Product attributes: steel wire rope sling loop is also called heart ring, steel wire rope aluminum sleeve, also called figure 8 aluminum sleeve<br>3. Production process: casting, bending, stamping<br>4. Surface treatment: polishing, shock light<br>5. Interface type: ring, with rope groove, figure 8<br>6. Product advantages: high-quality materials, sturdy and durable, anti-rust and anti-corrosion, smooth and burr-free, flat cut surface, aluminum, light weight, easy to deform so that it is tightly combined with the steel wire rope<br>7. Product features: solid structure, strong bearing capacity and not easy to deform.<br>8. Scope of application: high-quality materials, sturdy and durable, anti-rust and anti-corrosion, smooth and burr-free, tightly fixed, effectively fixing the wire rope.<br>9. Product introduction:<br>(1) The wire rope sling loop is also called the heart ring, with a rope groove for the rope end to be wrapped around and tied to prevent excessive bending and wear of the rope, and can be connected to other components of the heart-shaped metal ring.<br>(2) Figure 8 aluminum sleeve: used to fix the ends of the steel wire rope for fastening and connection. The wire rope passes through the hole in the middle of the figure eight aluminum sleeve and then string back, and then clamp with tools such as vise.<br>10. Specification introduction:<br> Heart ring M2-rope groove 3MM, L outer length 20MM, suitable for steel wire rope 2mm;<br> Heart ring M3-rope groove 4.4MM, L outer length 23MM, suitable for wire rope 3mm;<br> Heart ring M4-rope groove 5.3MM, L outer length 25MM, suitable for steel wire rope 4mm;<br> Heart ring M5-rope groove 6.4MM, L outer length 32MM, suitable for steel wire rope 5mm;<br> Figure 8 aluminum sleeve 1.2MM-inner height 1.6MM, length 9MM, suitable for steel wire rope 1.2mm;<br> Figure 8 aluminum sleeve 1.5MM-inner height 1.98MM, length 9MM, suitable for steel wire rope 1.5mm;<br> Figure 8 aluminum sleeve 2MM-inner height 2.6MM, length 9MM, suitable for steel wire rope 2mm;<br> Figure 8 aluminum sleeve 2.5MM-inner height 3MM, length 12MM, suitable for steel wire rope 2.5mm;<br> Figure 8 aluminum sleeve 3MM- inner height 3.4MM, length 14.1MM, suitable for wire rope 3mm;<br> Figure 8 aluminum sleeve 4MM-inner height 4.7MM, length 16.3MM, suitable for steel wire rope 4mm;<br>11. Installation notes:<br> (1) The shackle should be smooth and flat, and no defects such as cracks, sharp edges, overburning, etc. are allowed.<br> (2) It is strictly prohibited to use cast iron or cast steel shackles. The buckle body can be forged from killed steel, and the shaft pin can be machined after forging from bar material.<br> (3) The shackle should not be drilled or welded to repair. After the buckle body and the shaft pin are deformed, no repair is allowed.<br> (4) The buckle body and the bolt should be checked during use, and there should be no serious wear, deformation and fatigue cracks.<br> (5) The lateral spacing must not be subjected to tension during use, and the safety pin must be inserted into the shaft pin.<br> (6) After the shaft pin is correctly assembled, the width of the buckle body must not be significantly reduced, and the threaded connection is good.<br> (7) First use a suitable aluminum sleeve for the thickness of the wire rope, such as M2 for 2MM and M3 for 3MM.<br> (8) When using different tools, please ensure that the aluminum sleeve clamps the wire rope.<br>12. Product composition:<br> Chicken Heart Ring: M2*10pcs, M3*10pcs, M4*10pcs, M5*5pcs<br> Figure 8 aluminum sleeve:
